Zooz Z-Wave Long Range Low Voltage XS Relay ZEN58 800LR

• Pin It

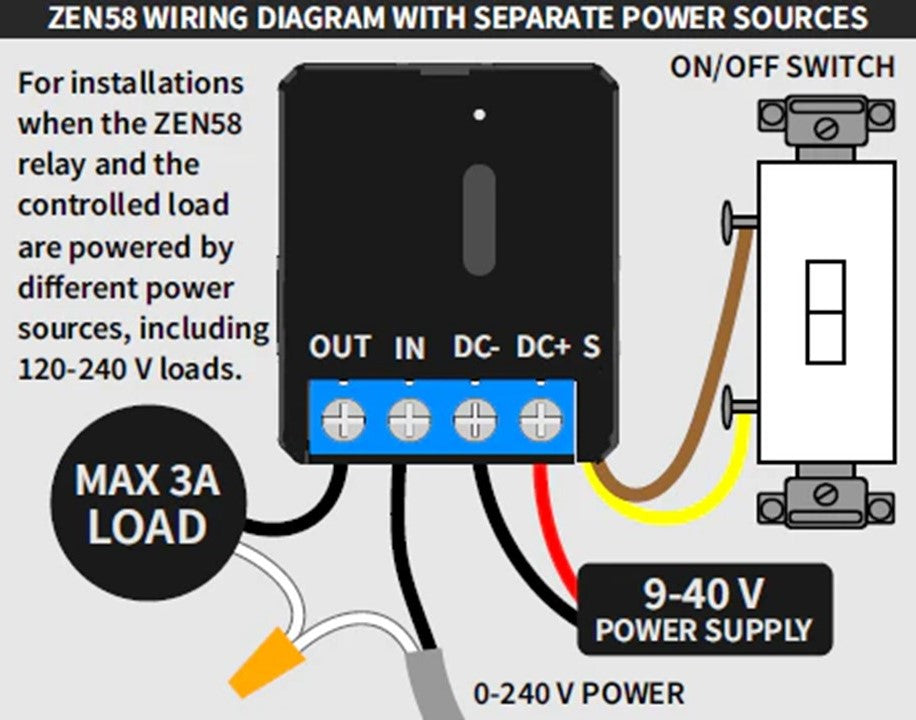

Minatare Dry Contact On/off Z-Wave control for 0-240V loads up to 3A.  Dry analog input: connect it to a wall switch for manual control or separate the "S" input from output to monitor analog sensors, including leak and open/close sensors (no Voltage, see diagram).  Great for automating garage doors, entry gates, gas fireplace, or any analog equipment under 3A that accepts simple relay on/off control.  Requires 9-40VDC power supply.

 Description

• BETA RELEASE:   You may need to update the firmware for this device, selected functionality or advanced features may not be available on your hub at the time of purchase
• Dry Contact On/off Z-Wave control for 0-240V loads up to 3A

• Low Voltage power: this relay runs on a 9-40V power supply
• 800 series Z-Wave chip: fast, secure, and rock solid wireless connectivity

• Z-Wave Long Range (ZWLR): if your hub implements ZWLR, you'll benefit from the ultra reliable direct device-to-hub communication which extends the range like never before and eliminates network lags
• Super compact design: fits it anywhere, perfect for stacked switches or shallow electrical boxes
• SmartStart and S2 authenticated security for a truly protected smart home

• Multicolor LED indicator for easier troubleshooting
• Built-in signal repeater: helps keep your network quick and reliable in a traditional Z-Wave mesh
• 5-year extended warranty (if registered within 30 days) and lifetime tech support


NOTE: Z-Wave gateway controller required - sold separately.

Specifications

• Z-Wave Region: US/CA/MX
• Power: 9~40V AC/DC
• Maximum Load: 3A at 240 V
• Z-Wave Range: Up to 300 feet line of sight (up to 1300 feet with Z-Wave Long Range)

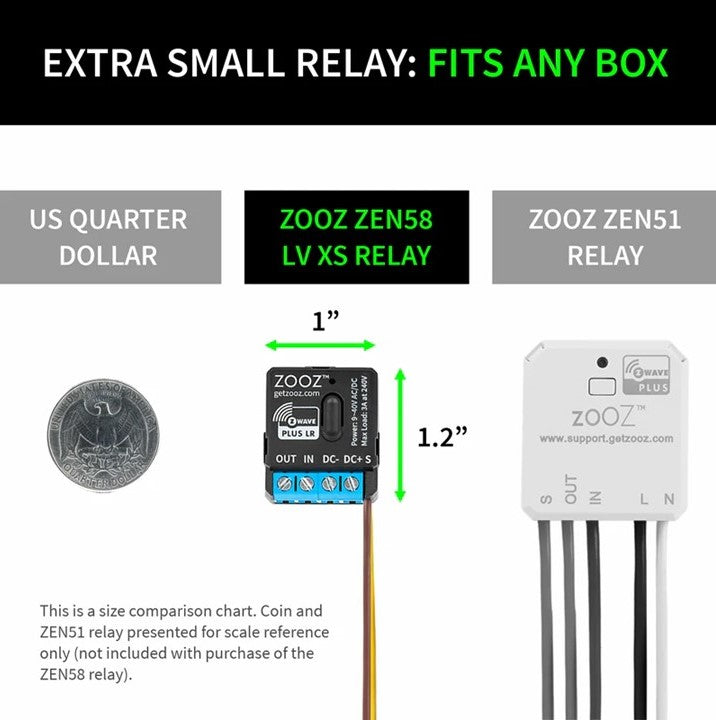

• Dimensions: 1.2” x 1” x 0.6”
• Operating Temperature: 32-104° F (0-40° C)

• Installation: Indoor use only
