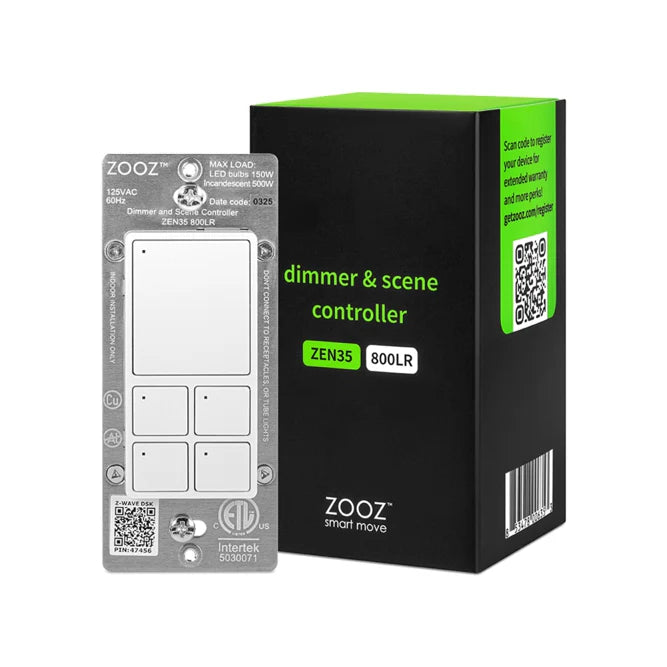

Zooz 800 Series Z-Wave Long Range Dimmer & Scene Controller ZEN35 800LR

• Pin It

The ZEN35 Scene Dimmer introduces the much-requested ability to dim a connected load directly from the main button—physically or via Z-Wave. Designed in response to valuable customer feedback, this multi-functional dimmer and scene controller in one offers smooth control of dimmable LED lighting up to 150W from the main button, all while maintaining the scene control flexibility users love. Whether you're pressing the large main button or using Z-Wave commands, the ZEN35 gives you intuitive, responsive lighting control that fits effortlessly into your smart home setup.

• Single Press (ON): Tap the main button once to turn the connected light on. The light will brighten to the maximum level or a custom brightness setting you've defined in the advanced parameters (more on that below).

• Single Press (OFF): Tap the button again to turn the light off completely.

• Press and Hold (DIM/BRIGHTEN) - Sequential: Press and hold the main button at any time (whether the light is on or off) to gradually adjust the brightness. The dimmer operates in a sequential manner:

  • If the light was previously dimmed, holding the button will continue dimming until the minimum level is reached.

  • Release and hold the button again to reverse direction and gradually brighten the light.

  • You can repeat this sequence—hold to dim, release, hold to brighten—as needed to find the perfect level.


Description

The ZEN35 Scene Dimmer gives you full control over how your lights respond—whether you're operating the switch manually or via Z-Wave. With parameters available for single and double tap behavior to program preset brightness levels on the ZEN35, you can keep this behavior handled locally without needing to involve the hub each time you tap the ZEN35 button.

• Light Dimmer with Z-Wave and manual control from the main button: use with quality dimmable LED lights up to 150 W. Read more about the main button dimming functionality here: How to Dim the Connected Load With the ZEN35 Scene Dimmer.

• 4 smart buttons for remote control*

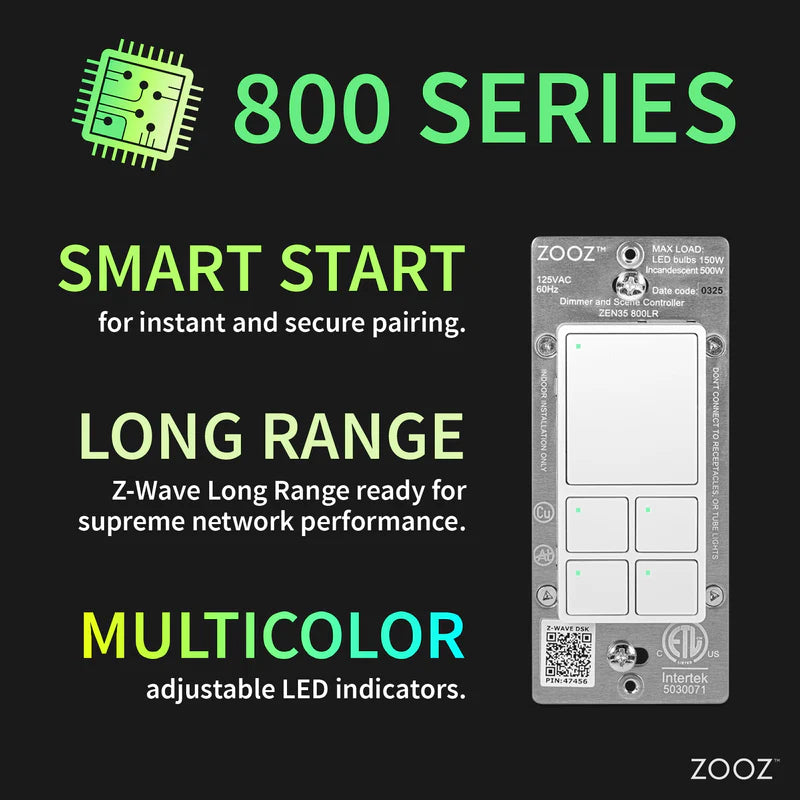

• NEW 800 series chip: more range, faster signal, SmartStart inclusion + S2 security
• Z-Wave Long Range ready: wireless coverage up to 1300 feet if your hub supports Long Range

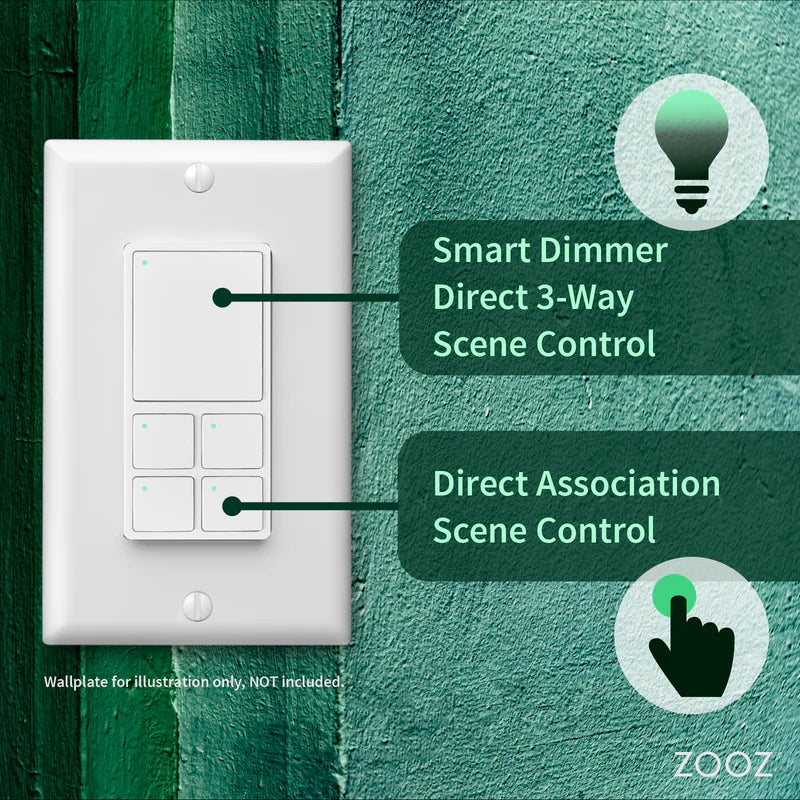

• Direct 3-Way Solution: no add-on switch needed, wires just like the ZEN72 model (Neutral required, 4-Way wiring possible if direct connection to load and line are in the same box, check before buying)

• Great for a simple single pole installation
• Adjustable LED indicators: choose from different colors and brightness levels
• Built-in range test tool: troubleshoot your network straight from the device
• Scene control: trigger up to 35 scenes, control up to 35 devices (available on hubs that support multi-tap triggers*)

• Smart bulb mode: disable the relay for truly wireless control or use as a remote control / smart add-on switch
• Compatible with quality LED and incandescent bulbs (don't connect to ballast tube lights, halogen bulbs, transformers, switched receptacles, or fans; NOTE: FEIT bulbs are not recommended)

• Extra-strong repeater to expand the coverage of your Z-Wave network

Specifications

• Z-Wave Region: US / MX / CA
• Power: 120 VAC, 60 Hz

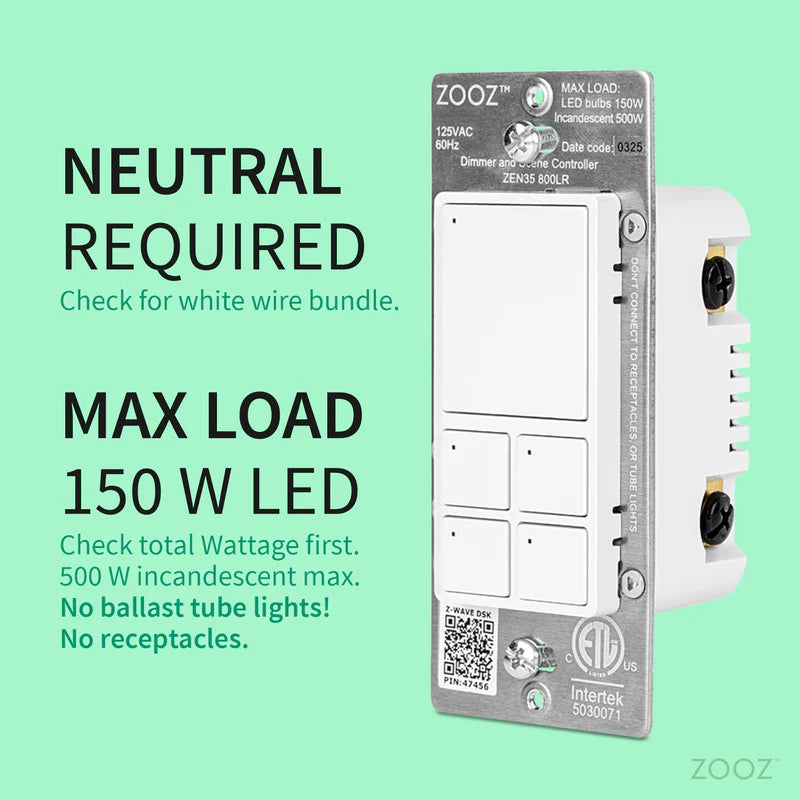

• Maximum Loads: 150W LED or 500W Incandescent. To be used with LED or incandescent lights only; DON’T use with receptacles, motors, fans, or tube lights.
• Z-Wave Range: Up to 500 feet line of sight or up to 1300 feet with Z-Wave Long Range
• Dimensions: 1.16" deep, 1.75" wide, 4.1" tall
• Operating Temperature: 32-104° F (0-40° C)

• Installation: Indoor use only
